Tabor Lucid LSX4091D 40GHz Single Channel Microwave Signal Generator

Signal Integrity and Purity
One of the most important requirements in today’s testing and measurement applications is a high signal quality. With a typical SSB phase noise of -134dBc/Hz at 1GHz, and -115dBc/Hz at 10GHz, at 10 kHz carrier offset, Tabor’s Lucid Series platform delivers great quality signals with the best price to performance value.

Modulation Schemes
Signal bursts and chirps have become common need in most aerospace or defence application. With Tabor’s All-New Lucid Series, any signal modulation is possible, no matter if “narrow” or “standard” signals are required. On top of its outstanding pulse modulation performance, the Lucid Series is also equipped with many CW interferers, and modulated signals such as AM, FM, PM, Pulse, Pattern and Sweep.

Extremely Fast Switching
Time is a crucial factor, whether in design, on the production floor or inside ATE systems. With a switching speed of less than 500 µs (100 µs optional) at up to 40GHz, Tabor’s Lucid Series ensures maximum measurements at minimum time, setting the industry’s highest throughput standard.

Multiple Ways to Control the Unit and Write your Code
Tabor’s Lucid X Series comes with its own dedicated software to control the instrument functions, modes and features via a graphical user interface (GUI) as well as a complete set of drivers, allowing you to write your application in various environments including LabVIEW, Python, CVI, C++, VB and MATLAB. You may also link the supplied dll to other Windows-based API’s or use low-level SCPI commands to program the instrument, regardless of whether your application is written for Windows, Linux or Macintosh operating systems.

Features:

• 40GHz Single Channel Microwave Signal Generator
• Frequency Resolution of 0.001Hz
• Phase noise of -134dBc/Hz at 1GHz, and -115dBc/Hz at 10GHz, at 10kHz carrier offset
• Max amplitude 10dBm Calibrated, 15dBm Settable
• Min amplitude -50dBm Calibrated, -70dBm Settable
• Amplitude Resolution of 0.01dB
• AM, FM, PM, Sweep & Pulse Modulation
• Extra small, compact module platform for OEM and custom requirements
• SPI and USB C integrated interfaces
• Multi instrument synchronization capability

Options and accessories:

• PLS - Pulse Generator
• PAT - Pattern Generator
• LP - Low Power option to -90 dBm
• FS - Fast Switching option 100us
• EMU - Emulator Pack includes emulators for Keysight, R&S, Anapico & Holzworth

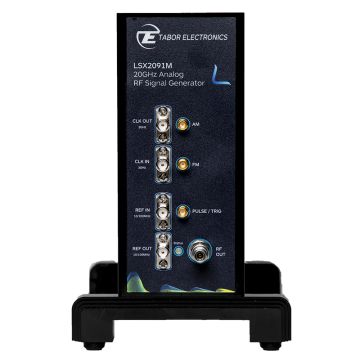

• STN - Lucid X desktop holder, designed to hold the module upright
• WE - 3 year standard warranty
