HAROGIC Technologies SAM-60 M3 6.3 GHz Compact Real-Time Spectrum Analyser/Receiver
Availability: In stock
Product Code:
76646
Manufacturer: HAROGIC Technologies
£2,859.00 £3,430.80
- 9 kHz~6.3 GHz real-time spectrum analyzer/receiver
- Integrated 100 kHz-6.3 GHz analog signal generator (option)
- 100 MHz analysis bandwidth, 300 GHz/sec spectrum sweep speed
- FPGA based digital signal processing
- 1GHz phase noise: -114 dBc/Hz@10kHz
- 1GHz DANL: -167 dBm/Hz
- Weight 168 grams (core module), size 142mm×54mm×16mm, power consumption 7-10 W
- Highly compatible API interfaces and SAStudio4 GUI
- Compatible with ARM and x86 processors, Linux and Windows operating systems
- Operating temperatures range from -20 oC/-40 oC to 70 oC (option)
- Built-in OCXO (option), temperature drift≤0.15 ppm
- USB3.0/2.0 Type-C interface
| Model | SAN-60 M2 | SAM-60 M3 | SAM-80 | SAE-90 | SAE-200 | SAN-400 |
| Frequency | 9 kHz-6.3 GHz | 9 kHz-6.3 GHz | 9 kHz-8.5 GHz | 9 kHz-9.5 GHz | kHz-20 GHz | 9 kHz-40 GHz |
| Sweep speed (GHz/s) | 100 | 300 | 300 | 1200 | 1200 | 400 |
| Architecture | Low IF | Low IF | Low IF | SHR | SHR | SHR |
| Preselect filters | 8 | 8 | 8 | 14 | 19 | 14 |
| Analysis bandwidth | 25 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Typical SSB 1GHz@10kHz | -110 | -114 | -120 | -101 | -100 | -104 |
| Weight (core module, g) | 168 | 168 | 168 | 188 | 195 | 185 |
| Size (core module.mm) | 142×54×16 | 142×54×16 | 142×54×16 | 118×60×15 | 118×60×15 | 125×60×17 |
| Power consumption (W) | 7-10W | 7-10W | 8-11W | 10-14W | 10-14W | 10-14W |
| GNSS and OCXO | Yes（Opt.） | Yes（Opt.） | Yes（Opt. | Yes（Opt.） | Yes（Opt.） | Yes（Opt.） |
HAROGIC Technologies SAM-60 M3 Datasheet
HAROGIC Technologies Product Overview
HAROGIC Technologies API Programming Guide - Programmers Reference Manual API Version
Write Your Own Review
| Photo | Product | SKU | |
|---|---|---|---|

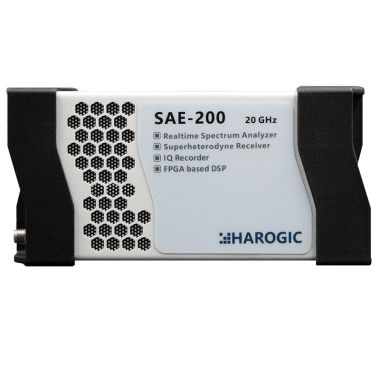

 | HAROGIC Technologies SAE-200 20 GHz Compact Real-Time Spectrum Analyser/Receiver | - | > |

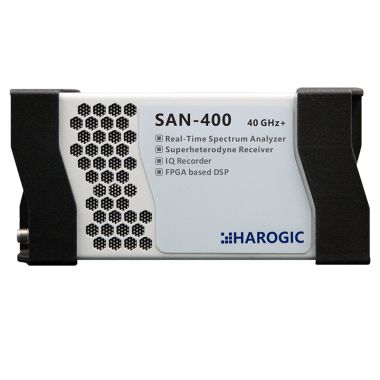

 | HAROGIC Technologies SAN-400 40 GHz Compact Real-Time Spectrum Analyser/Receiver | - | > |

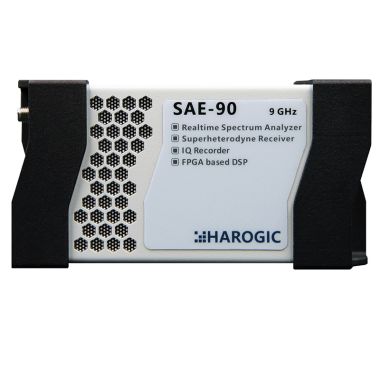

 | HAROGIC Technologies SAE-90 9.5 GHz Compact Real-Time Spectrum Analyser/Receiver | - | > |
