Fischione Model 9030 Turbo Pumping Station
- Evacuates the Fischione Instruments’ Model 2550 Cryo Transfer Tomography Holder during zeolite regeneration
- Pump down Thermo Fisher Scientific and JEOL TEM specimen holders and store the holders under clean, vacuum conditions
- Configurable; stack single Thermo Fisher Scientific or JEOL holder ports or use a quad holder dock (shown at left) to mix up to four Thermo Fisher Scientific and/or JEOL ports
- Four configurations available
- Reaches an ultimate pressure of < 10-6 Torr
- Oil-free vacuum
The Fischione Model 9030 Turbo Pumping Station is a versatile, configurable device for evacuating the Fischione Instruments’ Model 2550 Cryo Transfer Tomography Holder during zeolite regeneration and for storing transmission electron microscope (TEM) specimen holders under clean, vacuum conditions.
Zeolite regeneration
The Cryo Transfer Tomography Holder’s dewar contains zeolite desiccant, which enhances the dewar’s vacuum level. Zeolite must be regenerated regularly; this requires a high vacuum pumping station. The Turbo Pumping Station reaches an ultimate pressure of < 10-6 Torr when pumping down the Cryo Transfer Tomography Holder.
The pumping station allows for vacuum pumping of the specimen holder tip while evacuating the dewar vacuum.
TEM specimen holder storage
Up to four TEM specimen holders can be pumped down and stored in vacuum conditions. The Turbo Pumping Station can simultaneously accommodate both Thermo Fisher Scientific and JEOL specimen holders (if you configure your Turbo Pumping Station with both Thermo Fisher Scientific and JEOL ports).
Oil-free vacuum
The Turbo Pumping Station has an oil-free vacuum.
Easily configurable
The Turbo Pumping Station is available in multiple configurations for both Thermo Fisher Scientific and JEOL specimen holders. Up to four single Thermo Fisher Scientific and/or JEOL ports can be stacked on the Turbo Pumping Station. Alternatively, a quad dock accepts a mix of four Thermo Fisher Scientific and JEOL ports.
Available configurations:
- Basic (Thermo Fisher Scientific): A single dock with a single Thermo Fisher Scientific port; manual port venting
- Single (Thermo Fisher Scientific): A single dock with a single Thermo Fisher Scientific port; automatic port venting; display of vacuum level
- Single (JEOL): A single dock with a single JEOL port; automatic port venting; display of vacuum level
- Quad (Thermo Fisher Scientific and/or JEOL): A quad holder dock with four ports (user specifies Thermo Fisher Scientific and/or JEOL port mix); automatic port venting; display of vacuum level
A powerful, customizable vacuum pumping station for cryo tomography holder evacuation and transmission electron microscope (TEM) specimen holder storage. The Fischione Model 9030 Turbo Pumping Station can:
- Pump down FEI Company and JEOL, Ltd. TEM specimen holders and keep the holders under vacuum during storage.
- Evacuate the Fischione Model 2550 Cryo Transfer Tomography Holder’s dewar during zeolite regeneration.
The Turbo Pumping Station is customisable; you can stack single FEI or JEOL holder ports and add additional holder ports as needed or use a quad holder dock that allows you to mix and match up to four FEI and/or JEOL holder ports.
Fischione Model 9030 datasheet | Photo | Product | SKU | |
|---|---|---|---|
 | Fischione Model 190 Cryo-Can | - | > |
 | Fischione Model 1020 Plasma Cleaner | - | > |

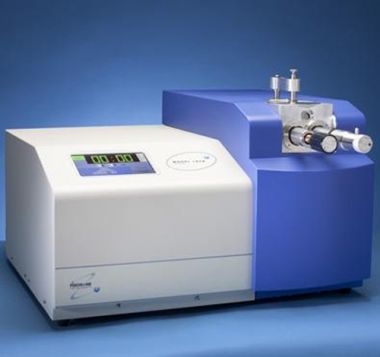

 | Fischione Model 1070 NanoClean | - | > |
