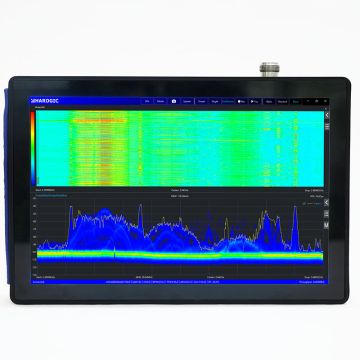

The new PXE-200 is a 20GHz ultra-portable handheld Realtime Spectrum Analyser (RSA).Weighing just 1.4 kg and a 10.1-inch all touch screen , this unit is built on the success of the SAE-200 unit. This is a great alternative to other handheld spectrum analysers on the market offering high performance in a small ultra-portable design. Combined with an impressive battery life over 3 hours is an excellent choice for field testing.

• Frequency range: 9 kHz-20 GHz SHR architecture, 19-segments pre-selected filters;
• Sweep speed > 900 GHz/s (RBW ≥ 300 kHz)
• Analytical bandwidth: 100 MHz (std.), 110 MHz (opt.)
• Standard preamplifier, DANL: -168 dBm/Hz (typ.)
• SSB Phase Noise: -100 dBc/Hz @10kHz (1 GHz typ.)
• Typical IF rejection > 90dB; Typical image suppression: 90 dB (≤9 GHz), >60 dB (≤20 GHz);
• Channel power, ACPR, IM3, OBW, Phase noise Real-time spectrum analysis based on FPGA, 100% POI < 3us;
• Analogue modulation analysis: AM/FM; Time domain IQ, PvT, real-time spectrum R&P;
• Weight: 1.4 kg, 10.1-inch all touch screen;
• Battery life: 3h+, support power bank supply;
• 3 years warranty. HDMI interface support, expandable desktop station.

The new PXE-90 is a 9.5GHz ultra-portable handheld Realtime Spectrum Analyser (RSA).

• Frequency range: 9 kHz-9.5 GHz SHR architecture, 19-segments pre-selected filters;
• Sweep speed > 830 GHz/s (RBW ≥ 300 kHz)
• Analytical bandwidth: 100 MHz (std.)
• Standard preamplifier, DANL: -168 dBm/Hz (typ.)
• SSB Phase Noise: -100 dBc/Hz @10kHz (1 GHz typ.)
• Typical IF rejection > 90dB; Typical image suppression: 90 dB (≤9 GHz), >60 dB (≤20 GHz);
• Channel power, ACPR, IM3, OBW, Phase noise Real-time spectrum analysis based on FPGA, 100% POI < 3us;
• Analogue modulation analysis: AM/FM; Time domain IQ, PvT, real-time spectrum R&P;
• Weight: 1.4 kg, 10.1-inch all touch screen;
• Battery life: 3h+, support power bank supply;
• 3 years warranty. HDMI interface support, expandable desktop station.

The new PXN-400 is a 40GHz ultra-portable handheld Realtime Spectrum Analyser (RSA). Weighing just 1.5 kg and with a 10.1-inch all touch screen. This is a great alternative to other handheld spectrum analysers on the market offering high performance in a small ultra-portable design. Combined with an impressive battery life over 3 hours it is an excellent choice for field testing.

• Frequency range: 9 kHz-40 GHz SHR architecture, 11-segments pre-selected filters
• Sweep speed > 500 GHz/s (RBW ≥ 300 kHz)
• Analytical bandwidth: 100 MHz (std.)
• Standard preamplifier, DANL: -161 dBm/Hz (typ.)
• SSB Phase Noise: -107 dBc/Hz @10kHz (typ.)
• Weight: 1.5 kg, 10.1-inch all touch screen
• Battery life: 3h+, support power bank supply
• 3 years warranty. HDMI interface support, expandable desktop station
