Stanford Research Systems (SRS) have a range of RF Signal Generators SG380 Series and the SG390 Series Vector Signal Generators offering high performance, affordable RF sources. Available with carrier frequencies from DC to 2 GHz, 4 GHz and 6 GHz.
⤑ Read MoreStanford Research Systems
-
SRS SG382 2 GHz RF Signal Generator
Special Price £4,429.02 £5,314.82 Regular Price £4,566.00 £5,479.20DC to 2 GHz analog signal generator:
- DC to 2 GHz
- 1 µHz resolution
- AM, FM, ØM, PM and sweeps
- OCXO timebase (std.)
- -116 dBc/Hz SSB phase noise (20 kHz offset, f = 1 GHz)
- Rubidium timebase (opt.)
- Square wave clock outputs (opt.)
- Analog I/Q inputs (opt.)
- Ethernet, GPIB and RS-232 interfaces
-
SRS SG384 4 GHz RF Signal Generator
Special Price £6,551.38 £7,861.66 Regular Price £6,754.00 £8,104.80DC to 4 GHz analog signal generator:
- DC to 4 GHz
- 1 µHz resolution
- AM, FM, ØM, PM and sweeps
- OCXO timebase (std.)
- -116 dBc/Hz SSB phase noise (20 kHz offset, f = 1 GHz)
- Rubidium timebase (opt.)
- Square wave clock outputs (opt.)
- Analog I/Q inputs (opt.)
- Ethernet, GPIB and RS-232 interfaces
-

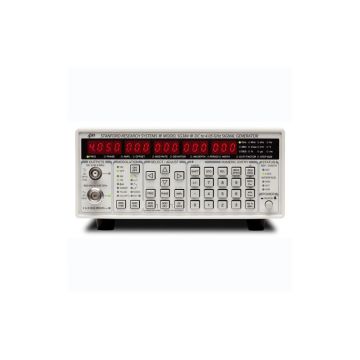

SRS SG386 6 GHz RF Signal Generator
Special Price £7,566.00 £9,079.20 Regular Price £7,800.00 £9,360.00DC to 6 GHz analog signal generator:
- DC to 6 GHz
- 1 µHz resolution
- AM, FM, ØM, PM and sweeps
- OCXO timebase (standard)
- -116 dBc/Hz SSB phase noise (20 kHz offset, f = 1 GHz)
- Ethernet, GPIB and RS-232 interfaces
Optional – please contact us for details:
- Rear-panel clock outputs (Option 1)
- 8GHz doubler & DC bias (Option 2)
- External I/Q modulation (Option 3)
- Rubidium timebase (Option 4)
- RM2U-S Single rack mount kit
- RM2U-D Dual rack mount kit
-
SRS SG392 2 GHz RF Vector Signal Generator
Special Price £7,289.55 £8,747.46 Regular Price £7,515.00 £9,018.00- DC to 2 GHz
- Dual baseband arb generators
- Vector and analog modulation
- I/Q modulation inputs (300 MHz RF BW)
- ASK, FSK, MSK, PSK, QAM, VSB and custom I/Q
- Presets for GSM, EDGE, W-CDMA, APCO-25, DECT, NADC, PDC, ATSCDTV & TETRA
- GPIB, RS-232 & Ethernet interfaces
-
SRS SG394 4 GHz RF Vector Signal Generator
Special Price £8,212.02 £9,854.42 Regular Price £8,466.00 £10,159.20- DC to 4 GHz
- Dual baseband arb generators
- Vector and analog modulation
- I/Q modulation inputs (300 MHz RF BW)
- ASK, FSK, MSK, PSK, QAM, VSB and custom I/Q
- Presets for GSM, EDGE, W-CDMA, APCO-25, DECT, NADC, PDC, ATSCDTV & TETRA
- GPIB, RS-232 & Ethernet interfaces
-
SRS SG396 6 GHz RF Vector Signal Generator
Special Price £9,134.49 £10,961.39 Regular Price £9,417.00 £11,300.40- DC to 2 GHz, 4 GHz or 6 GHz
- Dual baseband arb generators
- Vector and analog modulation
- I/Q modulation inputs (300 MHz RF BW)
- ASK, FSK, MSK, PSK, QAM, VSB and custom I/Q
- Presets for GSM, EDGE, W-CDMA, APCO-25, DECT, NADC, PDC, ATSCDTV & TETRA
- GPIB, RS-232 & Ethernet interfaces
