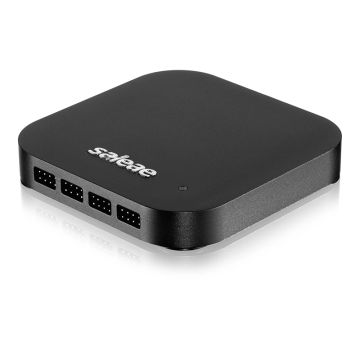

Saleae Logic Pro 8 Logic Analyser, 12-bit, 50MS/s - Black

Parts included as standard:

• Saleae Logic Pro 8 USB Logic Analyzer
• 2 x 4 Channel Wire Harnesses
• 16 Micro-Gripper Hooks
• Saleae Carrying Case
• USB 3.0 cable
• Getting Started Guide

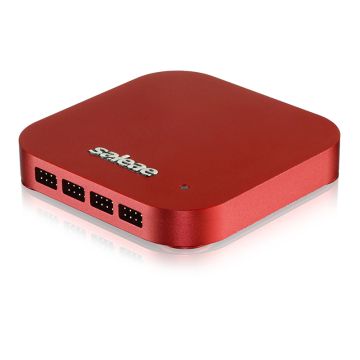

The Saleae Logic Pro 16 USB Logic Analyzer is a 16-channel logic analyser with each input dual purposed for analogue data recording. The device connects to a PC over USB and uses the Saleae Logic Software to record and view digital and analogue signals.

A logic analyser is a debugging tool used to record and view digital signals. It operates by sampling a digital input connected to a device under test (DUT) at a high sample rate. These samples are recorded to a sample buffer, and at the end of the capture, the buffer is displayed in the software for review.

Logic analysers are great for debugging embedded applications. In the most common case, a developer working on firmware for a microcontroller will write code to communicate with another component, possibly using protocols like serial, I2C, or SPI. To verify the functionality or to diagnose errors in the firmware, a logic analyser is connected to the digital IO used for communication and records the activity during testing. The recording is then shown on the display so the user can view the actual behaviour of the firmware and compare that with the expected behaviour to narrow down and identity the source of the issue – or verify that the operation is correct.

Features:

• Powerful, Easy-to-use Software
• Deep Sample Buffers
• Highly Portable, USB Attached
• 24 Included Protocol Analysers
• Automation API
• Custom Protocol Decoder Plugin API
• Edge and Pulse Width Triggering
• Protocol Result Filter and Search
• Measurements, Bookmarks and Timing Markers
• Four Data Export Formats: CSV, Binary, VCD and MATLAB
• Cross Platform Windows, Linux, and OSX

Applications:

• Firmware Debugging
• FPGA Debugging
• Functional Verification
• Performance Profiling
• Reverse Engineering
• Protocol Decoding
• Data Logging

Key Specifications:

• Eight Digital Channels
• 500 MS/s Digital Sampling (max)
• 100 MHz Max Digital Bandwidth
• Eight Analog Channels
• 50 MS/S Analog Sampling (max)
• 5 MHz Analog Bandwidth
• Recording Length Limited by Available RAM and Density of Recorded Data
• RGB LED, Customizable 24-bit Colour
• USB 3.0 Super Speed

3-Year Warranty
The 3-year warranty always applies, regardless of where you purchased the product. All warranty replacements and repairs are handled directly by Saleae. There is no need to contact the distributor where you purchased it. Also, you don't need the original receipt. As long as you have the unit, we can repair or replace it under warranty.

Try for free:

Download the latest version of the software here It will work in a fully-featured demo mode.

Windows 8, 10 and 11

Mac OSX 10.14 Mojave+

Linux Ubuntu 18.04+64 bit, et al.
