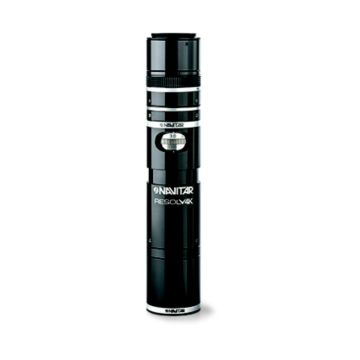

The Resolv4K modular video microscope system has been designed for superior visible wavelength axial color correction; but did you know about our VIS-NIR (Visible through Near Infrared) and SWIR options? The coating choices and design efficiency make this system the ideal SWIR camera complement for use applications such as:

  • SWIR Microscopy
  • Semiconductor Analysis
  • Through Silicon Imaging
  • PCB Inspection
  • Solar Cell Inspection
  • Spectrometry
  • Forensics
  • Chemical Analysis
  • Research

SWIR and Vis-NIR options are available for the following part numbers:

For VIS-NIR imaging the Resolv4K VIS-NIR can be configured with the following Pixelink cameras:

  • PL-D732MU-NIR (2MP, 2/3" format, Mono, USB 3.0)
  • PL-D734MU-NIR (4MP, 1" format, Mono, USB 3.0)
  • PL-D753MU (3MP, 2/3" format, Mono, USB 3.0, HDR)
  • PL-D757MU (7MP, 1.1" format, Mono, USB 3.0, HDR)

For SWIR imaging applications, we have tested the Resolv4K system with the Acuros™ 1MP SWIR camera from SWIR Vision Systems.

Sample images of bonded wafers showing bond seal rings and alignment marks used in wafer level vacuum packaging. Backlight with halogen using a Navitar Resolv4K system and Acuros™ 1MP SWIR Camera. Photos courtesy of SWIR Vision Systems.

NEW VIS-SWIR NMV Lenses

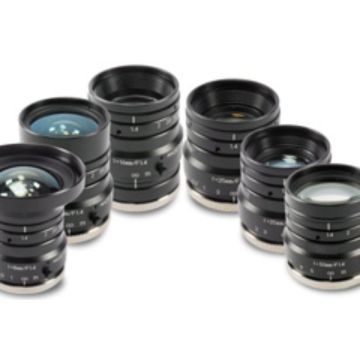

This VIS-SWIR lens series maximizes performance from the Visible to SWIR wavelengths simultaneously. The new optical design allows for less focus shift when imaging at various wavelengths. With 5MP resolution, a fast f/1.8 aperture, and coverage from 400 – 1700nm the lenses are ideal for machine vision inspection and surveillance applications. Other application examples include invivo imaging, defense and security, semiconductor/silicon inspection, moisture detection, fill-level detection, and produce sorting.

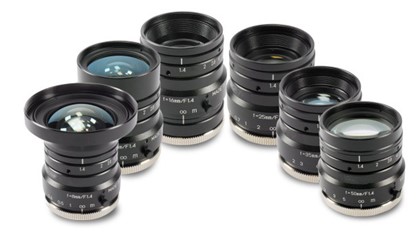

Available NMV-SWIR Lenses

Features:

  • Specialised optical design for imaging in both Visible and SWIR
  • Optimised transmission from 400 – 1700nm, +50% transmission out to 2000nm
  • Covers a 1” (16mm diagonal) sensor
  • Standard thumb screws for locking focus and iris functions.

For further information on our Navitar range please click HERE.

To speak with one of our Sales & Applications Engineers please call 01582 764334 or click here to email.
