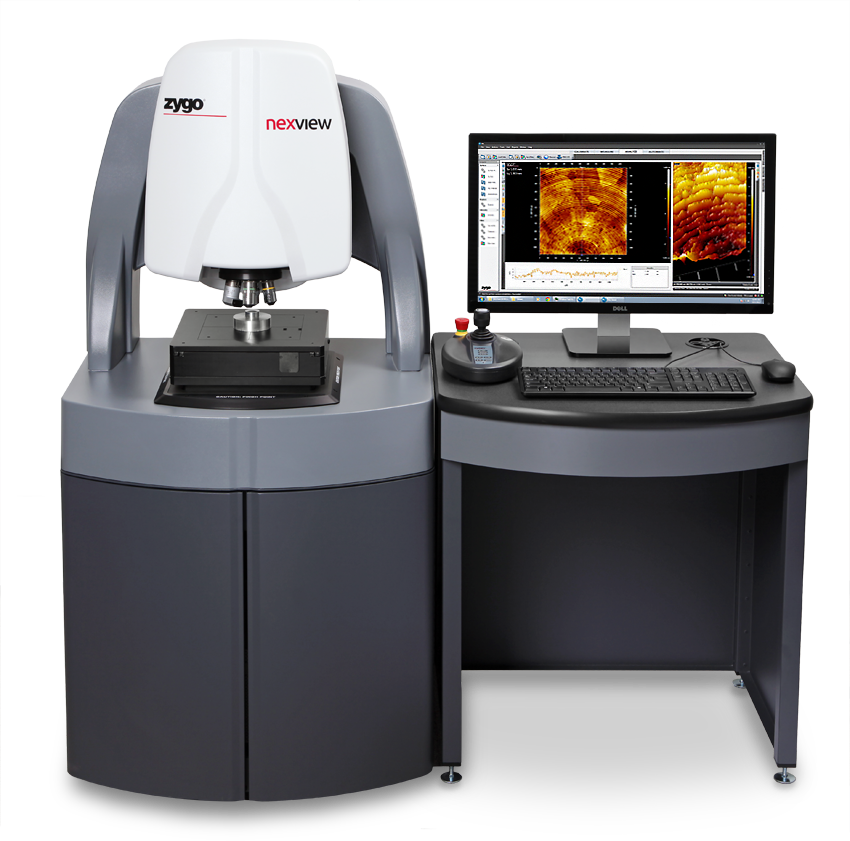

The Nexview™ is Zygo’s highest performance general purpose 3D non-contact optical profiler. It has been designed to see “More Data” on surfaces which have traditionally been difficult to measure for optical profilers. Materials such as matt ceramics, highly sloped angles, precision optics and film coatings are all measured easily.
New Windows based Mx™ software and a high level of hardware automation make measurements of very rough surfaces through to super-smooth surfaces a user-friendly metrology experience for research and production environments alike. Add in colour imaging, crash protection, integrated vibration platform, 200mm XY stages, parcentric compensation, films analysis and the widest range of Standard, Long, and Super Long Working Distance Objectives and you have a single metrology tool to measure (nearly) all surfaces.
Zygo
optical profilers are designed to be metrology tools where gage R&R is of prime importance.
Key Features:
- Scanning White Light Interferometer (CSI) with rough and smooth measurement modes.
- Smart PSI for super smooth surfaces
- “More Data” – see surfaces unobtainable by other optical metrology tools
- Measure all types of surface with one instrument, without compromising on data quality – machined parts, optics, rough ceramics, fibres, films and more
- Vibration robustness – integrated isolation table and Surescan(tm) technology
- Automate in a production environment
- Fringe free colour imaging
- Gage capable and ISO25178 compliant results
- Assisted focussing, objective crash protection and parcentric correction.
The
Nexview™ is available for demonstration and sample measurement at Lambda Photometrics. If you are interested in learning more about the
Nexview™ we are able to demonstrate at our facility in Harpenden. Alternatively, contact us to discuss your requirements and send your samples to us for measurement.
Zygo manufacture a full range of
optical profilers from low cost to high end. We can match the right system to your application using our applications expertise.
For pricing information, further details, or to arrange a demonstration please contact Ken Middleton or Alexander Barton on 01582 764 334 or CLICK HERE to email.
