• Simultaneously cleans transmission and scanning electron microscope specimens and specimen holders
• Enhances imaging and analytical results
• Removes existing carbonaceous contamination
• Prevents contamination
• No etching or sputtering
• Storage in clean vacuum

• Simultaneously cleans specimens, specimen holders, and specimen mounts
• No change to elemental composition or structural characteristics
• Multiple gas inlets with mixing capabilities
• Evacuates vacuum storage containers

• Eliminates sample contamination during scanning electron microscope (SEM) operation
• SEM can be used while the Cryo-Can is cooled, even on SEMs without airlocks
• Contaminants condense onto a removable, cold surface
• Can work either before or while the SEM is operating

• Ideal for room-temperature electron tomography
• High-tilt angles
• Optimised specimen clamping
• Extended field of view
• Easy, accurate specimen loading and centering

• Optimised for energy-dispersive X-ray spectroscopy
• Beryllium tip and clamps minimise X-ray interference
• High-tilt angles
• Large field of view
• Easy, accurate specimen loading and orientation

• Room temperature tomography in ultra-high resolution microscopes
• Extended field of view at high-tilt angles
• Can tilt up to 90º
• Suitable for ultra-narrow gap (< 3 mm) pole-piece geometries
• Optimised specimen protection during insertion into the TEM

• Fully jewelled mechanism for ultra-precise planar specimen rotation
• Optimised tilt in pole-piece gaps as small as 5 mm
• Ideal for room temperature electron tomography
• Maximises tomographic data obtained from the specimen
• Extended field of view
• Motorised version available

• Motorised rotational control for high-throughput applications
• Interfaces with the Thermo Fisher Scientific transmission electron microscope (TEM) control system
• Maximises tomographic data obtained from the specimen
• Allows for remote control of rotation and dual-axis functionality
• Extended field of view even at high-tilt angles
• FlexiClamp provides an easy, secure means of specimen retention
• Non-motorised version available

• Accepts either rod-shaped or conically-shaped specimens
• Ideal for specimens prepared by focused ion beam
• Ideal for atom probe tomography and field ion microscopy specimens
• Allows 360º image acquisition and tomographic reconstruction without the loss of information due to the missing wedge

• Suits both tomography and single particle cryo-EM
• Works for other soft materials that may require cooling when imaging
• User friendly for specimen loading
• Unique mechanism for specimen unloading
• Extended field of view at high tilt up to 80° (in TEMs with cryo pole pieces)
• Resolution to 0.18 nm
• Low drift rate of 1.5 nm/minute
• Operating temperature below -175 °C

• An advanced mechanism retracts the specimen into the body of the holder, which seals and isolates the specimen from the surrounding atmosphere
• Ideal for sensitive specimens that can be altered by environmental conditions
• Optimised for transferring specimens under vacuum or in the presence of inert gas
• Provides a large field of view in transmission electron microscopes (TEMs) possessing a ST or wider gap pole piece
• Capable of tilting to ±70°; can be used for tomography in microscopes with pole-piece gaps > 5 mm
• Accepts 3 mm specimens or specimen grids
• Available for both Thermo Fisher Scientific and JEOL TEMs

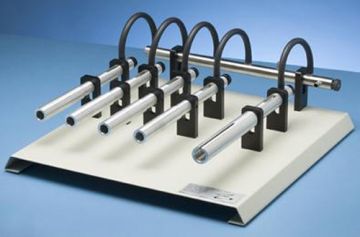

The Fischione Model 9010 Vacuum Storage Container is a portable device for the vacuum storage and transport of plasma cleaned specimens and transmission electron microscope (TEM) specimen holders.

• High-precision valves ensure vacuum integrity
• Stores up to five transmission electron microscope specimen holders
• Provides safe storage of specimen holders under clean, vacuum conditions

• Evacuates the Fischione Instruments’ Model 2550 Cryo Transfer Tomography Holder during zeolite regeneration
• Pump down Thermo Fisher Scientific and JEOL TEM specimen holders and store the holders under clean, vacuum conditions
• Configurable; stack single Thermo Fisher Scientific or JEOL holder ports or use a quad holder dock (shown at left) to mix up to four Thermo Fisher Scientific and/or JEOL ports
• Four configurations available
• Reaches an ultimate pressure of < 10^-6 Torr
• Oil-free vacuum
