Tempo 567XL Fibre Optic Power Meter

The Tempo Micro OPM is a fast, easy to use Optical Power Meter with an internal visual fault locator (VFL). Suitable for singlemode and multimode applications

• Wide measurement range (+10 to -70dBm)
• High power CATV range (+26 to -50dBm)
• VFL for safe and effective fault locating
• Singlemode and multimode compatible
• Calibrated wavelengths of 850/1300/1310/1490/1550/1625nm
• 270Hz, 1kHz and 2kHz tone detect
• Auto power off

The Tempo Micro OPM is a fast, easy to use Optical Power Meter with an internal visual fault locator (VFL). Suitable for singlemode and multimode applications

• Wide measurement range (+10 to -70dBm)
• High power CATV range (+26 to -50dBm)
• VFL for safe and effective fault locating
• Singlemode and multimode compatible
• Calibrated wavelengths of 850/1300/1310/1490/1550/1625nm
• 270Hz, 1kHz and 2kHz tone detect
• Auto power off

• Measure range (dBm) -50 to +27
• InGaAs detector for maximum sensitivity
• Filtered InGaAs for measuring high powered optical signals
• Singlemode and multimode measurements
• Calibrated wavelengths of 850nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm
• 270Hz, 1kHz and 2kHz tone

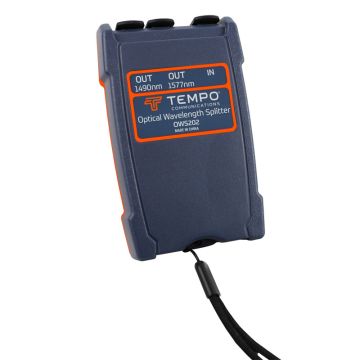

• 1490/1570nm
• High accuracy to measure specific channel wavelengths
• Eliminates the need for expensive DWDM power meters
• Low loss
• SC/APC connections
• Low return loss will not disrupt network
• Compact design
• Convenient lanyard to securely hold

• 1490/1577nm
• High accuracy to measure specific channel wavelengths
• Eliminates the need for expensive DWDM power meters
• Low loss
• SC/APC connections
• Low return loss will not disrupt network
• Compact design
• Convenient lanyard to securely hold

A handheld power meter for use by professional installers and contractors, to test power, loss and continuity on single mode & multimode fibre optic systems. This full-feature instrument has comprehensive report generation capabilities and a variety of useful features for maximum productivity and flexibility.

• Easy to use, rugged & versatile
• 25 calibration λ, 1% accuracy ISO/IEC 17025 traceable
• Improved high power accuracy
• Autotest with up to 3 λ displayed
• Long battery life & micro USB external power
• Large back-lit LCD, sunlight readable
• Interchangeable connectors
• Large memory with text naming & time stamp
• KITS™ reporting software with data security
• One button memory dump to USB key
• MultiFiber ID tone detection
• Full QA & linearity test report

A fibre optic power meter for professional installers and contractors, to test power, loss and continuity on high power single mode fibre optic systems up to +24 dBm. The detector uses an innovative attenuator device for improved overall test accuracy. This full-feature instrument has comprehensive report generation capabilities and a variety of useful features for maximum productivity and flexibility.

• Easy to use, rugged & versatile
• 24 calibration λ, 1% accuracy ISO/IEC 17025 traceable
• Improved high power accuracy
• Autotest with up to 3 λ displayed
• Long battery life & micro USB external power
• Large back-lit LCD, sunlight readable
• Interchangeable connectors
• Large memory with text naming & time stamp
• KITS™ reporting software with data security
• One button memory dump to USB key
• MultiFiber ID tone detection
• Full QA & linearity test report

An optical power meter for professional installers and contractors, to test power, loss and continuity on plastic fiber, multimode + single mode fiber optic systems with MPO and other connectors, and free-space beams up to +15 dBm. Ideal for: Plastic fiber, PCS, single mode, multimode, multi-fiber ribbon cable such as MMC, MPO 12 – 72 fiber up to 12 fibers wide, and LC/ SC etc fiber optic systems. This full-feature instrument has comprehensive report generation capabilities and a variety of useful features for maximum productivity and flexibility. For all fiber optic Ethernet & Infiniband applications exccept 16 x 1 or 16 x 2 ribbon types.
Optional connector adapter not included, order separately.

• Easy to use, rugged & versatile
• 31 calibration λ, 1% accuracy ISO/IEC 17025 traceable
• Improved high power accuracy
• Autotest with up to 3 λ displayed
• Long battery life & micro USB external power
• Large back-lit LCD, sunlight readable
• Interchangeable connectors
• Large memory with text naming & time stamp
• KITS™ reporting software with data security
• One button memory dump to USB key
• MultiFiber ID tone detection
• Full QA & linearity test report

An optical power meter for professional installers and contractors, to test power, loss, and continuity on multimode + single mode fibre optic systems up to +15 dBm, with a 7 x 3 mm Ge detector, Ideal for testing: all multi-fibre ribbon cable such as MMC or MPO styles 16 -32 fibre, 12 to 72 fibre, SM & MM, and other connector styles and LC/ SC etc. fibre optic systems. This full feature instrument has comprehensive report-generation capabilities and a variety of useful features for maximum productivity and flexibility. For all current / proposed versions of fiber optic Ethernet and InfiniBand.

• Easy to use, rugged & versatile
• Specifically optimised for MMC / MPO 12 x n, 16 x n fiber ribbon connectors
• 32 calibration λ, 1% accuracy ISO/IEC 17025 traceable
• Improved high power accuracy
• Autotest with up to 3 λ displayed
• Long battery life & micro USB external power
• Large back-lit LCD, sunlight readable
• Interchangeable optical connectors
• Large memory with text naming & time stamp
• KITS™ reporting software with data security
• One button memory dump to USB Flash Drive
• MultiFibre ID tone detection
• Full QA & linearity test report

An economical, in-line PON meter used during FTTH / PON service turn-up or maintenance, to perform a live optical power test with optical loss test (OLT) equipment.

• Easy to use, compact, rugged & economical true PON / GPON tester
• Fast reading and settling time
• Sunlight-readable backlit display
• Pass/fail display and LEDs
• 1310 nm upstream, 1490/1550 nm downstream
• 18 hr from AA alkaline batteries & auto off
• 100 test memory & real-time clock
• PC software for downloading results & setting pass/fail
• 1-year warranty, 3-year calibration cycle
• Full QA report with ISO9001-compliant calibration

Note: This instrument is designed to test PON transmission power. Alternatively, loss testing use requires a non-standard KI2000 series test source with specific CWDM-compliant lasers.

An economical, in-line PON meter used during 10G FTTH / PON service turn-up or maintenance, to perform a live test with the OLT equipment.

• Easy to use, compact, rugged & economical true PON meter
• Fast reading and settling time
• Sunlight-readable backlit display
• Pass / fail display
• 1270 & 1310 nm upstream, 1490 & 1577 nm downstream
• 10 hr from built-in Lithium battery & auto-off
• 100 test memory & real-time clock
• PC software for downloading results & setting pass / fail
• 1-year warranty, 3-year calibration cycle
• Full QA report with ISO9001 compliant calibration

Note: This instrument is designed to test PON transmission power. Alternatively, for loss testing use, it requires a non-standard KI2000 series test source with specific CWDM compliant lasers.

Tempo general power meter for Multimode and Singlemode applications (Single fibre). A simple and reliable optical power meter for testing power and loss on typical multimode & single mode fibre optic systems. It provides high accuracy and simplicity of use.

• 8 calibration λ, ±2% accuracy, ISO/IEC 17025 traceable
• Small size, easy to use, rugged & reliable
• dBm / dB / linear, 0.01 dB resolution
• Display hold & max/min recording
• Tone detector with Multi-Fiber ID
• Easy to use TamperLock mode
• Interchangeable connectors
• Full QA reports

A simple and reliable optical power meter for testing power and loss on high power fibre optic systems up to +24 dBm. It provides high accuracy and simplicity of use. An advanced netral density filter design offers improved accuracy for this type of instrument, and use of an InGaAs detector provides better accuracy and response flatness for DWDM systems up to 1650 nm.

• 9 calibration λ, ±2% accuracy, ISO/IEC 17025 traceable
• Small size, easy to use, rugged & reliable
• dBm / dB / linear, 0.01 dB resolution
• Display hold & max/min recording
• Tone detector with Multi-Fiber ID
• Easy to use TamperLock mode
• Interchangeable connectors
• Full QA reports
