Beehive 150A 100kHz – 6GHz EMC Probe Amplifier
The Beehive Electronics 150A EMC probe amplifier is a low-noise, wide-bandwidth amplifier designed for use with the 100 series EMC probes. It features a gain of over 30 dB and a frequency response of 100 kHz to 6 GHz.
High gain and low noise improve measurement sensitivity and speed.
- Wide bandwidth allows it to be used with all 100 series probes
- RF input and output protected against ESD and DC power
- AC power supply included
- Standard 50-ohm inputs and outputs allow it to be used in any application requiring a low noise amplifier
Accessories
Beehive 110A EMC Probe Cable, SMB Probe to SMA on input of amplifier cable
Beehive 114A Amplifier Cable, SMA output of amplifier to N-Type cable of your spectrum analyser

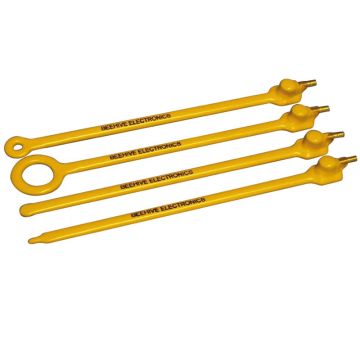

Beehive 101A EMC Probe Set, set of four EMC probes, 100A, 100B, 100C and 100D
The 150A is typically placed between the EMC probe and the spectrum analyser. Its high gain and low noise improve the system sensitivity dramatically. This higher sensitivity allows the user to widen the spectrum analyser resolution bandwidth, resulting in faster sweeps and measurements. Depending on the model of spectrum analyser used, sensitivity can be improved by 20 to 30 dB.
This improved sensitivity can improve measurement speed by a factor of 10,000 or more.
Beehive Electronics 100 Series EMC Probe Datasheet
Beehive Electronics 150A EMC Probe Amplifier Datasheet
