• Affordable 5.5 digit high performance bench/portable multimeter
• Dual display and dual measurement capability
• Mains power or Internal rechargeable batteries for true portability
• High accuracy and resolution: 0.02%, 1µV, 0.1µA, 1mΩ
• True RMS AC, Frequency, capacitance and temperature measurements
• Wide range of computing functions e.g. Ax + B
• USB interface standard, RS232, LAN/LXI and GPIB optional

• Affordable 5.5 digit high performance bench/portable multimeter
• Dual display and dual measurement capability
• Mains power or Internal rechargeable batteries for true portability
• High accuracy and resolution: 0.02%, 1µV, 0.1µA, 1mΩ
• True RMS AC, Frequency, capacitance and temperature measurements
• Wide range of computing functions e.g. Ax + B
• USB interface standard, RS232, LAN/LXI and GPIB optional
• USB, RS232, LAN/LXI and GPIB fitted as standard

The HA1600A is a high speed, high accuracy ac power analyser for single phase loads of up to 16 amps RMS. Dual power cables allow the supply to the load to be independent of the supply to the instrument. The output to the load is via a front panel mounted ‘standard’ mains connector. A wide range of power connectors is available including most national types. The HA1600A can measure Watts, VA, Volts rms, Volts peak, Amps rms, Amps peak, Crest factors, THD, Po.

Bench/system DC power supply, PowerFlex regulation, smart analog controls single or dual outputs, 360 to 840 watts, with/without remote interfaces.

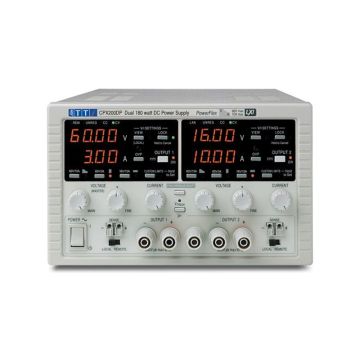

Bench/system DC power supply, PowerFlex regulation, smart analog controls dual outputs, 2 x 60V/10A 180W, USB, RS232, LAN & GPIB Interfaces

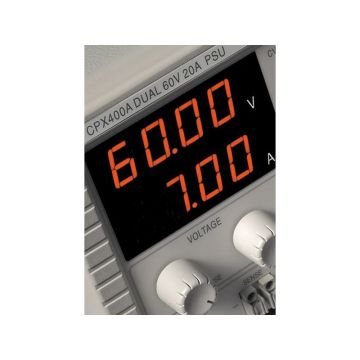

Bench/system DC power supply, PowerFlex regulation, smart analog controls single output, 60V/20A 420W, isolated analogue interface.

Bench/system DC power supply, PowerFlex regulation, smart analog controls dual outputs, 2 x 60V/20A 420W, no interfaces.

Bench/system DC power supply, PowerFlex regulation, smart analog controls dual outputs, 2 x 60V/20A 420W, USB, RS232 LAN & GPIB Interfaces.

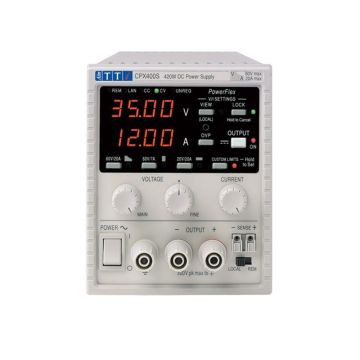

Bench/system DC power supply, PowerFlex regulation, smart analog controls single output, 60V/20A 420W, no interfaces.

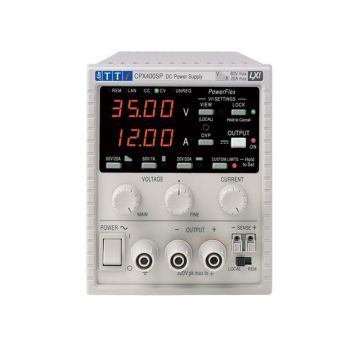

Bench/system DC power supply, PowerFlex regulation, smart analog controls single output, 60V/20A 420W, USB, RS232, LAN & GPIB interfaces.

• EL155R has one output 0-15V at 0-5.0A, total power is 75W
• Price includes free shipping.
• Precision with Simplicity, the new EL-R series was developed from the top selling EL series. By adding four digit meters and switchable remote sensing, the EL-R series offers much higher precision whilst retaining the simplicity of operation which many bench-top power supply users prefer.
• Eight models are offered including single, dual and triple outputs and covering a power range of 30 watts up to 130 watts.

• EL183R has one output 0-18 at 0-3.3A, total power is 60W
• Price includes free shipping.
• Precision with Simplicity, the new EL-R series was developed from the top selling EL series. By adding four digit meters and switchable remote sensing, the EL-R series offers much higher precision whilst retaining the simplicity of operation which many bench-top power supply users prefer.
• Eight models are offered including single, dual and triple outputs and covering a power range of 30 watts up to 130 watts.

• EL301R has one output 0-30V at 0-1A, total power is 30W
• Price includes free shipping.
• Precision with Simplicity, the new EL-R series was developed from the top selling EL series. By adding four digit meters and switchable remote sensing, the EL-R series offers much higher precision whilst retaining the simplicity of operation which many bench-top power supply users prefer.
• Eight models are offered including single, dual and triple outputs and covering a power range of 30 watts up to 130 watts.

• EL302R has one output 0-30V at 0-2A total power is 60W
• Price includes free shipping.
• Precision with Simplicity, the new EL-R series was developed from the top selling EL series. By adding four digit meters and switchable remote sensing, the EL-R series offers much higher precision whilst retaining the simplicity of operation which many bench-top power supply users prefer.
• Eight models are offered including single, dual and triple outputs and covering a power range of 30 watts up to 130 watts.

• EL302RD has two outputs O/P 1 =0-15V at 0-2A, O/P 2 =0-15V, total power is 120W
• Price includes free shipping.
• Precision with Simplicity, the new EL-R series was developed from the top selling EL series. By adding four digit meters and switchable remote sensing, the EL-R series offers much higher precision whilst retaining the simplicity of operation which many bench-top power supply users prefer.
• Eight models are offered including single, dual and triple outputs and covering a power range of 30 watts up to 130 watts.

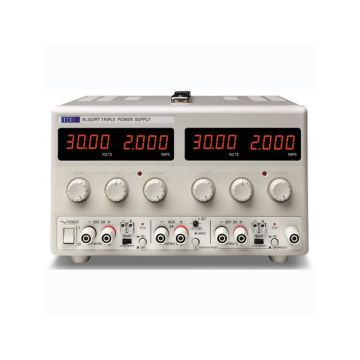

• EL302RT has three outputs O/P 1 =0-30V at 0-2A, O/P 2 =0-30V at 0-2A, O/P 3 =1.5-5V at 0-2A, total power is 130W
• Price includes free shipping.
• Precision with Simplicity, the new EL-R series was developed from the top selling EL series. By adding four digit meters and switchable remote sensing, the EL-R series offers much higher precision whilst retaining the simplicity of operation which many bench-top power supply users prefer.
• Eight models are offered including single, dual and triple outputs and covering a power range of 30 watts up to 130 watts.

• EL303R has one output 0-15V at 0-3A, total power is 90W
• Price includes free shipping.
• Precision with Simplicity, the new EL-R series was developed from the top selling EL series. By adding four digit meters and switchable remote sensing, the EL-R series offers much higher precision whilst retaining the simplicity of operation which many bench-top power supply users prefer.
• Eight models are offered including single, dual and triple outputs and covering a power range of 30 watts up to 130 watts.

• EL561R has one output 0-56V at 0-1.1A, total power is 60W
• Price includes free shipping.
• Precision with Simplicity, the new EL-R series was developed from the top selling EL series. By adding four digit meters and switchable remote sensing, the EL-R series offers much higher precision whilst retaining the simplicity of operation which many bench-top power supply users prefer.
• Eight models are offered including single, dual and triple outputs and covering a power range of 30 watts up to 130 watts.

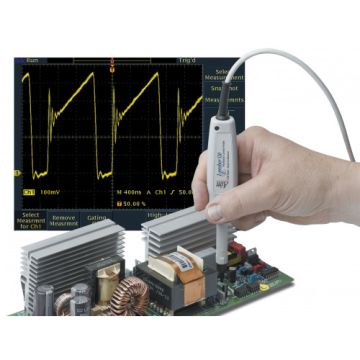

Unique technology enabling current measurement in PCB tracks with a bandwidth of DC to 5MHz, dynamic range of 10mA to 20A pk-pk. Useable with any normal oscilloscope via BNC, safety rated to 300V Cat II. Investigates waveforms in any conductor including ground planes.

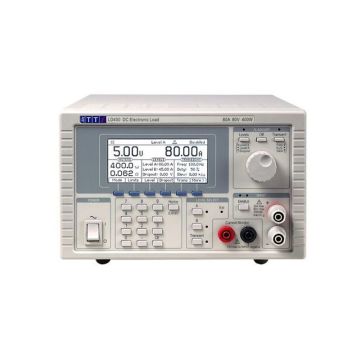

The AIM-TTi LD400 DC Electronic Load offers 80V-80A-400W with front panel control and monitoring.

• Constant current, resistance, power, voltage and conductance
• Transient generator, variable slew rate, soft start
• Current monitor output, analogue remote control
• Front and rear input terminals
• Built-in transient generator with variable slew
• High resolution backlit graphic LCD with soft key control
• USB, RS-232, GPIB and LAN interfaces (P - Programmable Models)
• Three models available, LD400 with analogue front panel control and LD400P with programmable digital interfaces or the programable LDH400P offering 400W upto 500V or 16Amps.

The AIM-TTi LD400P DC Electronic Load offers 80V-80A-400W with front panel control and Full bus control via USB, RS232, GPIB and LXI compliant LAN interfaces.

• Constant current, resistance, power, voltage and conductance
• Transient generator, variable slew rate, soft start
• Current monitor output, analogue remote control
• Front and rear input terminals
• Built-in transient generator with variable slew
• High resolution backlit graphic LCD with soft key control
• USB, RS-232, GPIB and LAN interfaces (P - Programmable Models)
• Three models available, LD400 with analogue front panel control and LD400P with programmable digital interfaces or the programable LDH400P offering 400W upto 500V or 16Amps.

The LDH400P DC Electronic Load offers 500V-80A-400W with front panel control and Full bus control via USB, RS232, GPIB and LXI compliant LAN interfaces.

• Constant current, resistance, power, voltage and conductance
• Transient generator, variable slew rate, soft start
• Current monitor output, analogue remote control
• Front and rear input terminals
• Built-in transient generator with variable slew
• High resolution backlit graphic LCD with soft key control
• USB, RS-232, GPIB and LAN interfaces (P - Programmable Models)
• Three models available, LD400 with analogue front panel control and LD400P with programmable digital interfaces or the programable LDH400P offering 400W upto 500V or 16Amps.

• Provides an EN61000–3–2 compliant source
• 1000W power capability at 230V
• Up to 4·4A rms load current and up to 10A peak currents
• Comprehensive overload protection
• Connection via standard power connectors

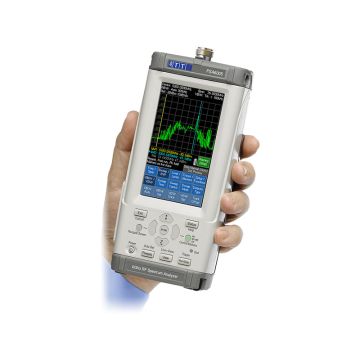

• True hand-held battery powered RF spectrum analyzers.
• 10MHz to 3600MHz or 6000MHz frequency range
• Resolution bandwidths from 300Hz to 10MHz (1:3:10)
• -120dBm typical noise floor at -40dBm ref. level/10kHz RBW
• Measurement in dBm or dBµV, mV or µW
• Zero span mode with AM and FM audio demodulation
• Trace modes of normal, peak hold and trace average
• Live, View and Reference traces in contrasting colours
• Twin markers with readout of absolute & difference values
• Smart marker movement with selectable peak tracking
• Frequency counter with down to 10Hz resolution
• Frequency presets and independent state storage

The SMU-LINK is an accessory that can be used to connect two SMUs together.

For use with the SMU4001 and SMU4201 single channel SMU from AIM-TTi.

The new SMU4000 Series from AIM-TTi, famous for their leading range of power supplies and DMM’s and arbitrary waveform generators.

The AIM-TTi SMU4000 Series provides class leading performance at a new and affordable price point for a four quadrant SMU. Combining touch screen technology with an intuitive graphical user interface provides a clear and natural flow through the test and measurement process.

The SMU4001 offers 4-quadrant Source, Sink & Measure with 6½ digit resolution ±21V, to ±3A ,25W, at 0.1μV & 100fA resolution in a compact A4 footprint.

Working in Academia or research, please contact us for education discounts or a product demo.

The new SMU4000 Series from AIM-TTi, famous for their leading range of power supplies and DMM’s and arbitrary waveform generators.

The AIM-TTi SMU4000 Series provides class leading performance at a new and affordable price point for a four quadrant SMU. Combining touch screen technology with an intuitive graphical user interface provides a clear and natural flow through the test and measurement process.

The SMU4201 offers 4-quadrant Source, Sink & Measure with 6½ digit resolution ±210V, to ±3A ,25W, at 0.1μV & 100fA resolution in a compact A4 footprint.

Working in Academia or research, please contact us for education discounts or a product demo.

Announcing a series of high-performance programmable function/arbitrary generators with models from 40MHz to 240MHz available in 14 and 16 bit resolution.

• 1µHz to 80MHz at 10mVp-p to 10Vp-p
• Arbitrary waveforms of 14 bits at up to 400MSa/s
• High resolution, low jitter pulses can be generated up to 80MHz

PLEASE NOTE: Due to components costs and supply issues, production has been suspended on TGF4042, TGF4082, TGF4162. Recommended stock alternative is the TGF4242.

Announcing a series of high-performance programmable function/arbitrary generators with models from 40MHz to 240MHz available in 14 and 16 bit resolution.

• 1µHz to 80MHz at 10mVp-p to 10Vp-p
• Arbitrary waveforms of 14 bits at up to 400MSa/s
• High resolution, low jitter pulses can be generated up to 80MHz

PLEASE NOTE: Due to components costs and supply issues, production has been suspended on TGF4042, TGF4082, TGF4162. Recommended stock alternative is the TGF4242.

Announcing a series of high-performance programmable function/arbitrary generators with models from 40MHz to 240MHz available in 14 and 16 bit resolution.

• 1µHz to 80MHz at 10mVp-p to 10Vp-p
• Arbitrary waveforms of 14 bits at up to 400MSa/s
• High resolution, low jitter pulses can be generated up to 80MHz

PLEASE NOTE: Due to components costs and supply issues, production has been suspended on TGF4042, TGF4082, TGF4162. Recommended stock alternative is the TGF4242.

Announcing a series of high performance programmable function/arbitrary generators with models from 40MHz to 240MHz.

• 1µHz to 240MHz at 16-bit
• 1µHz to 80MHz at 10mVp-p to 10Vp-p 80MHz), 5Vp-p 120MHz) and 2.55Vp-p 240MHz)
• Arbitrary waveforms of 16 bits at up to 800MSa/s
• Duty cycle 3ns
• Pseudo Random Binary Sequence (PRBS)
• High resolution, low jitter pulses can be generated up to 240MHz

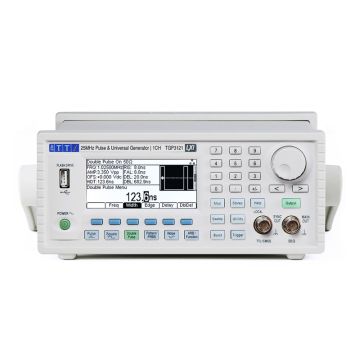

The TGP3100 Series from AIM-TTi are a range of 4 single and dual channel pulse generators in 25 and 50MHz.

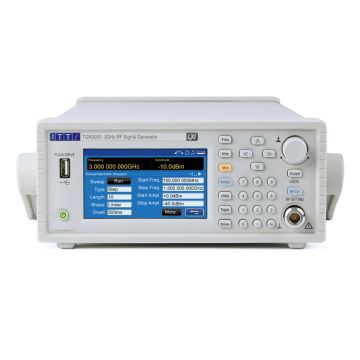

The TGR2051 and TGR2053 are the next generation of RF signal generators from Aim-TTi, offering both exceptional performance and new improved functionality with touch screen operation.

• Extensive analog and digital modulations
• 150kHz to 1.5GHz
• Amplitude range of -127dBm to +13dBm
• High signal purity, phase noise <-117dBc/Hz (typical) at 1GHz output and 10kHz offset
• 1ppm frequency accuracy, <1ppm drift in first year
• Touch Screen Display
• Fast amplitude and/or frequency sweeps
• Option U01:-Internal or external digital modulations - ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK & PSK.

The TGR2051 and TGR2053 are the next generation of RF signal generators from Aim-TTi, offering both exceptional performance and new improved functionality with touch screen operation.

• Extensive analog and digital modulations
• 150kHz to 3GHz
• Amplitude range of -127dBm to +13dBm
• High signal purity, phase noise <-117dBc/Hz (typical) at 1GHz output and 10kHz offset
• 1ppm frequency accuracy, <1ppm drift in first year
• Touch Screen Display
• Fast amplitude and/or frequency sweeps
• Option U01:-Internal or external digital modulations - ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK & PSK.

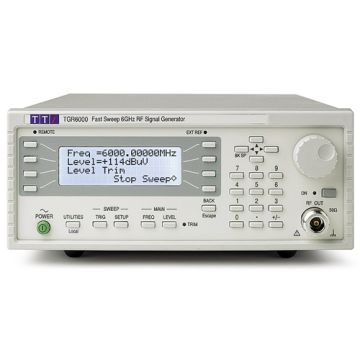

• 10MHz to 6000MHz frequency range
• 10Hz setability, +/-1ppm frequency stability
• Locking to external frequency standard
• -110dBm to +7dBm amplitude, 0.1dB steps
• Fast stepping sweep with dwell times down to 10ms
• List sweep of up to 1000 points of amplitude vs frequency
• User compensation tables for specific test set-ups
• Storage for 12 generator set-ups and 16 sweep lists
• Compact half-rack 2U casing uses minimum bench space
• Full remote control through RS232, USB, LAN and GPIB
• Significantly lower cost than other 6GHz generators
